Equipment

CHASSIS:

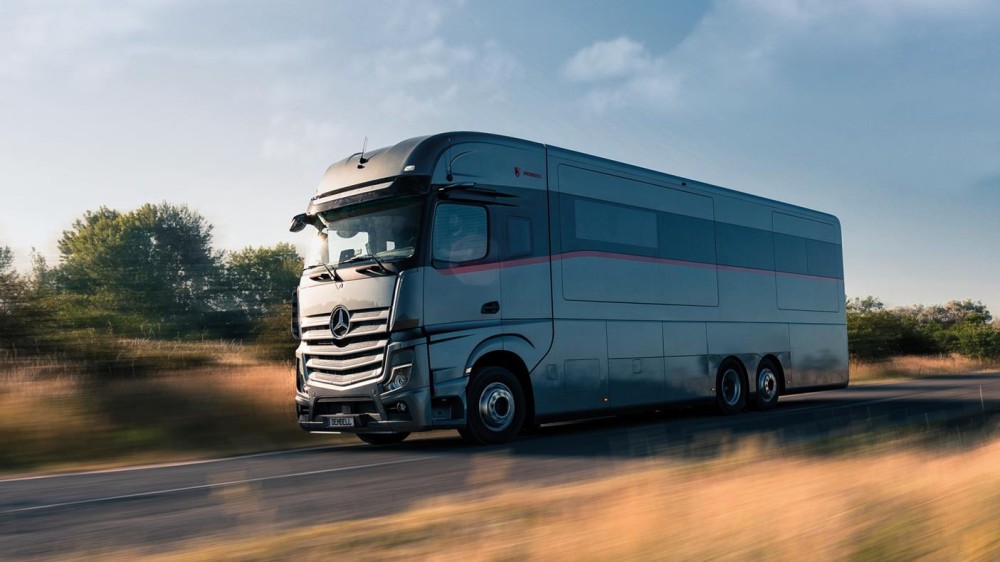

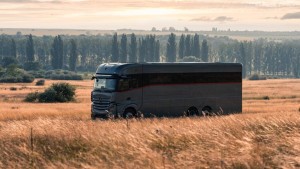

• Mercedez-Benz Actros 2553 L, 6 × 2, 390 kW (530 PS) Euro VI engine, 2600 Nm
• Engine Diesel, Six-cylinder, With turbocharger, Charge air cooling and exhaust gas recirculation (EGR)
• Particulate filter. With SCR catalytic converter, 12,800 cm³, 390 kW/530 HP, 1800 RPM, EURO VI, 2600 Nm, 1100 RPM
• Braking system Electropneumatic (EPB), ABS, ASR and ESP
• Engine brake High performance
• Pneumatic suspension
• Gear box Automatic 12-speed, Mercedes-Benz PowerShift 3
• Chassis Auxiliary chassis made of galvanized steel profiles.
• Body: Made of stainless steel. Insulated sandwich panel roof, floor plate, side walls. Side walls with 3mm aluminium casing
• Three-axle

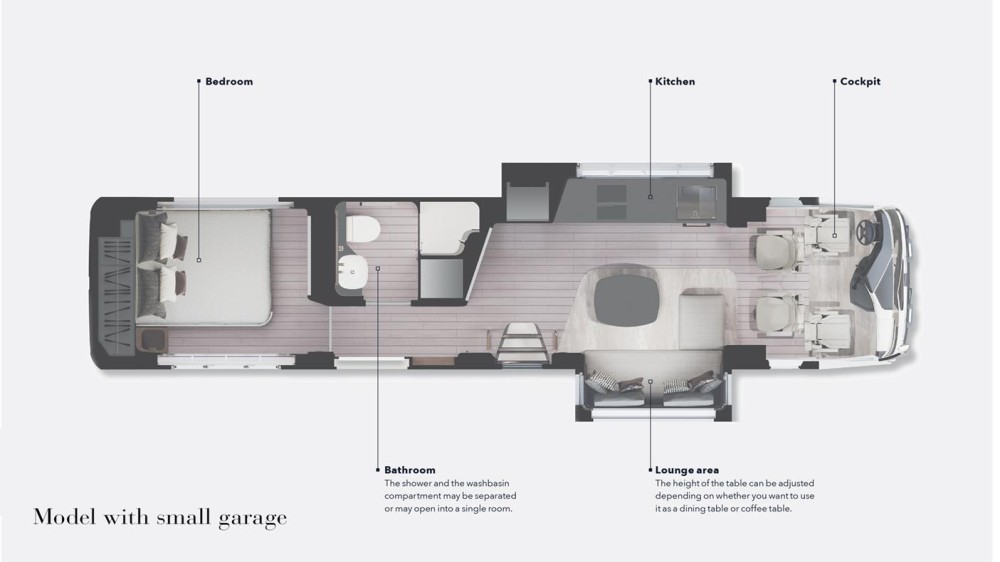

• Hydraulic slide outs: 3 pcs. in side storage model in the front on the right side in the front rear on the left side. 2 pcs. in garage models in the front on the right side In the front on the left side with pneumatic sealing system
• Bottom luggage compartments: Fully insulated, felt covered, with heating, lighting, electric door lock, without door handle
• Awning: 600 x 350 cm Integrated in the side wall of the vehicle with automatic wind sensor LED lighting without outrigger leg. For up to 39 kmph windspeed

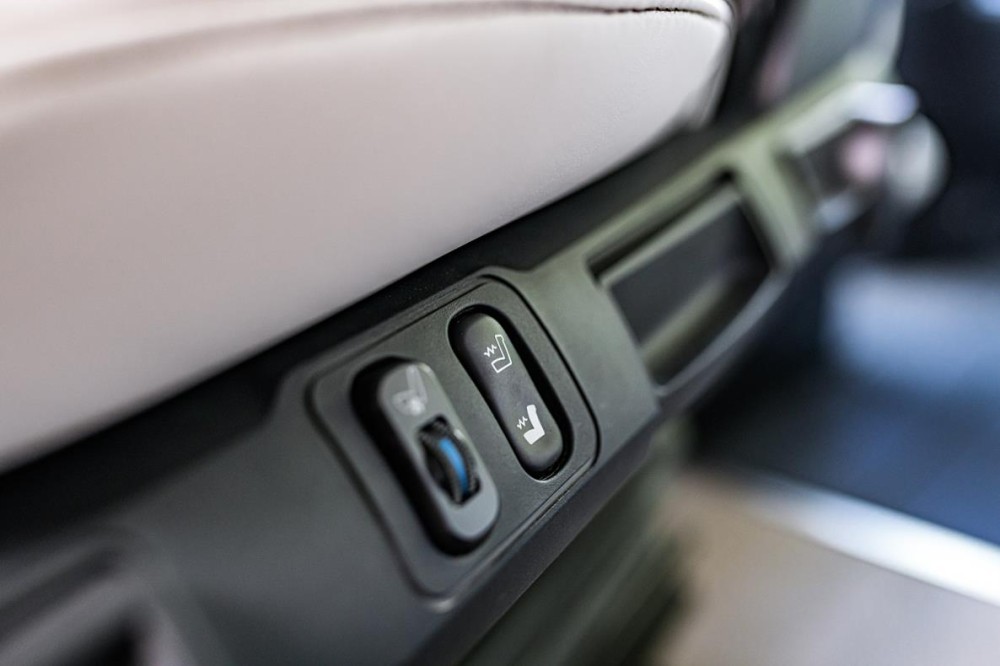

• Driver/passenger seats with pneumatic suspension and massage function
• Electric window lift system in cabin doors
• Windscreen Heated, made of tinted composite glass
• Skylight in the cockpit: Electrically operated With blinds and mosquito net

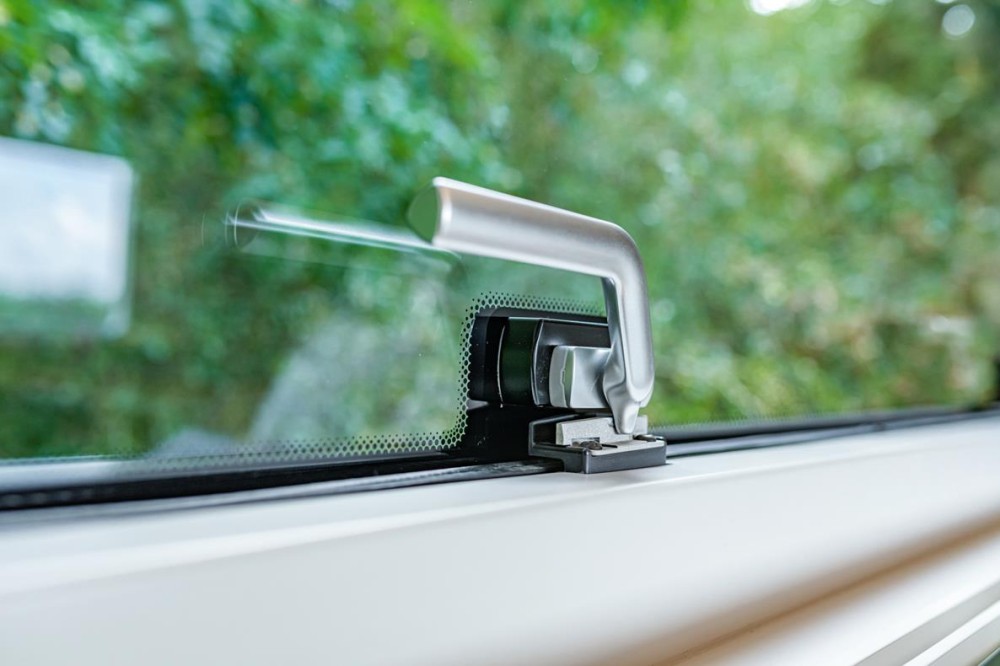

• Real glass window: Integrated into the plane of the vehicle, can be opened, thermally insulated
• Skylight: Heat-insulated, with electrically operated blinds, window heating option

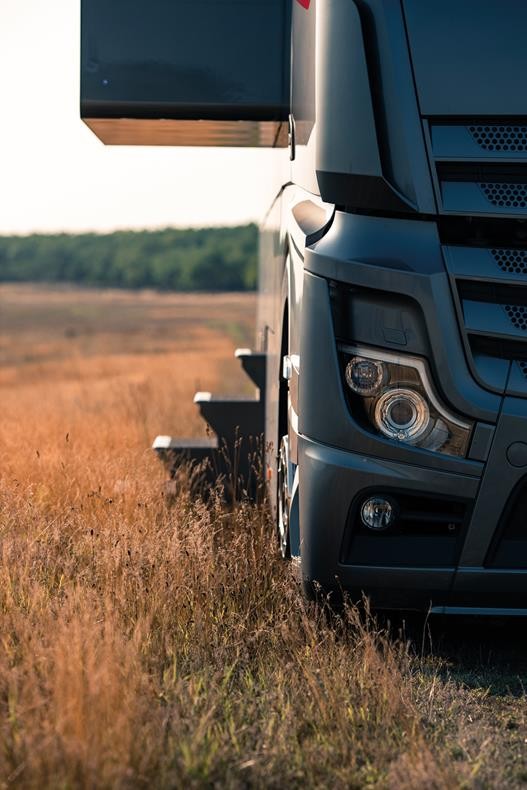

• Tilting side stairs Electrically operated TÜV certified, EU type approval
• Daytime running light /curve light LED
• Headlights Bi-XENON

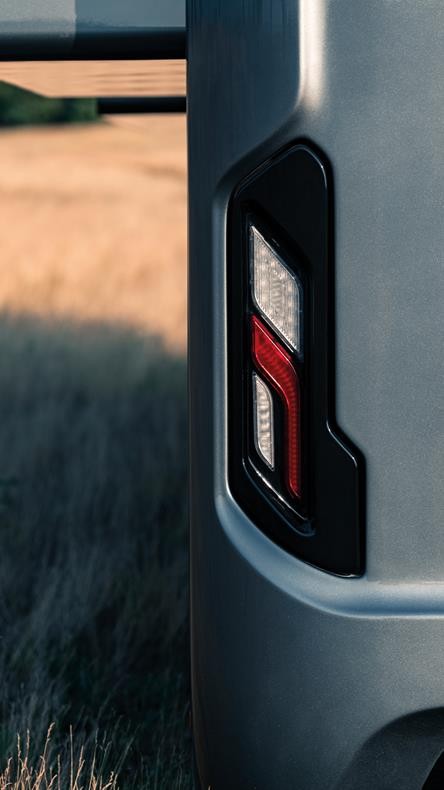

• Lights Hella LED rear fog light, reverse light, rear lights
• Tank Diesel: 390 l, AdBlue: 60 l

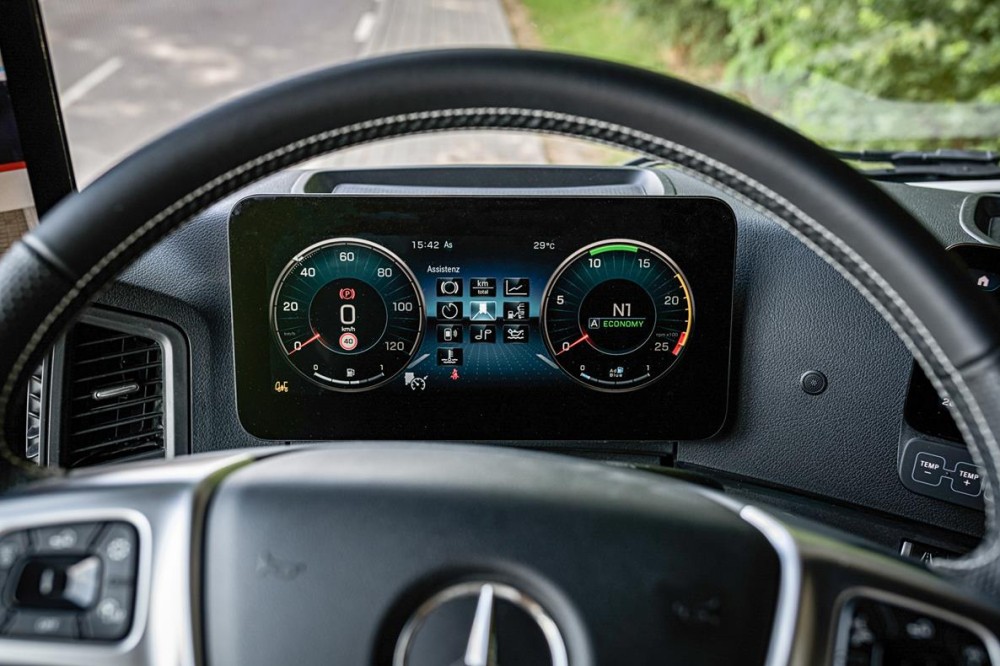

• Steering wheel multi-function, with immobilizer, with leather cover, power-assisted steering, adjustable steering column
• Wheel rims 8 pcs. aluminium, ALCOA Dura Bright 11.75×22.5” VA/9” × 22.5” HA / 11.75×22.5”
• Hydraulic outriggers 4 pcs. automatic horizontal adjusting of vehicle, with LCD monitor
• Differential lock
• Air conditioning automatic in the driver’s cabin
• Lane departure warning + active brake assist (emergency brake assist)
• Remote assistant including start-stop in traffic and monitoring assistant
• Adaptive Cruise control
• Electronic anti-theft/immobilizer system
• Radio FM radio RDS-EON, MW, LW, KW, front AUX port, bluetooth hands-free system
• Truck navigation The system (takes into account the length /width/height/weight of the vehicle) The MB-Predictive Powertrain Control supports adaptive cruise control based on GPS data from the navigation system and taking into account the topography
• Camera monitor system Brigade electronics BN360-200 for large rigid vehicles 26 cm (10.4”) LCD TFT monitor vertical orientation, four pcs. of 180° cameras active from 0 to 30 kmph, does not distract the driver’s attention at higher speeds
• Front door lock electrically operated control options: pushbutton, fingerprint sensor or card

INSIDE:

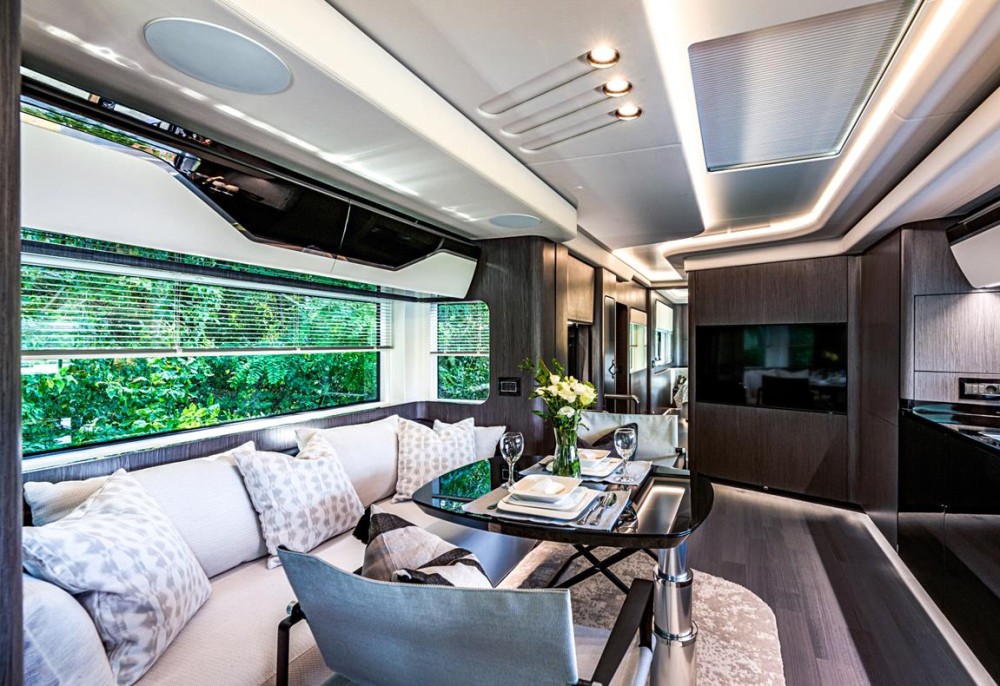

• Interior furniture: italian desing: real wood veneer, veneered interior, multiple colour options, real wood floor finish. With electric locks that close automatically when the vehicle is started.

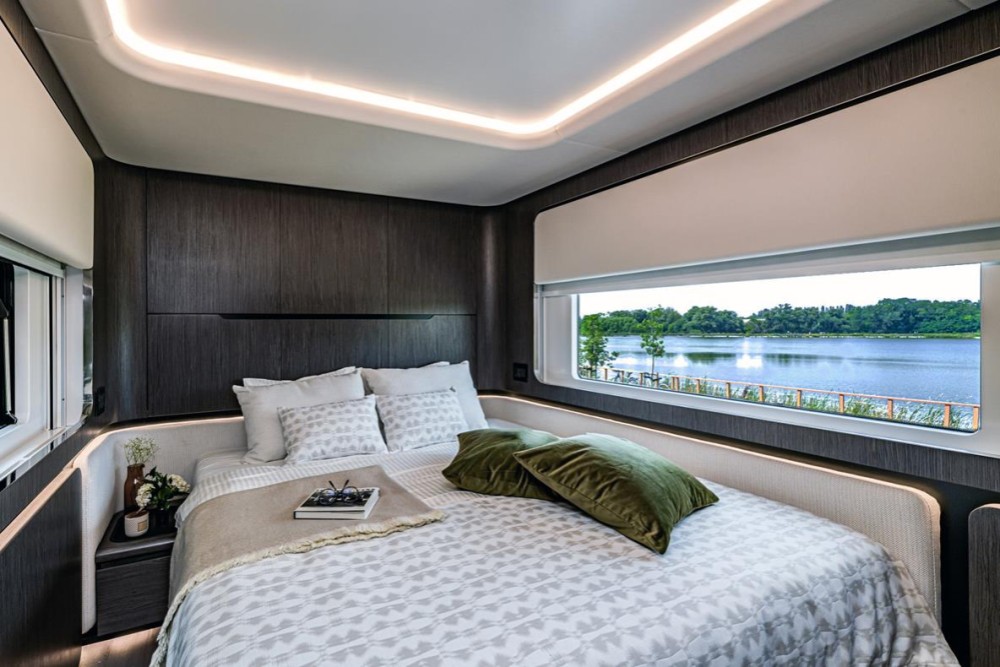

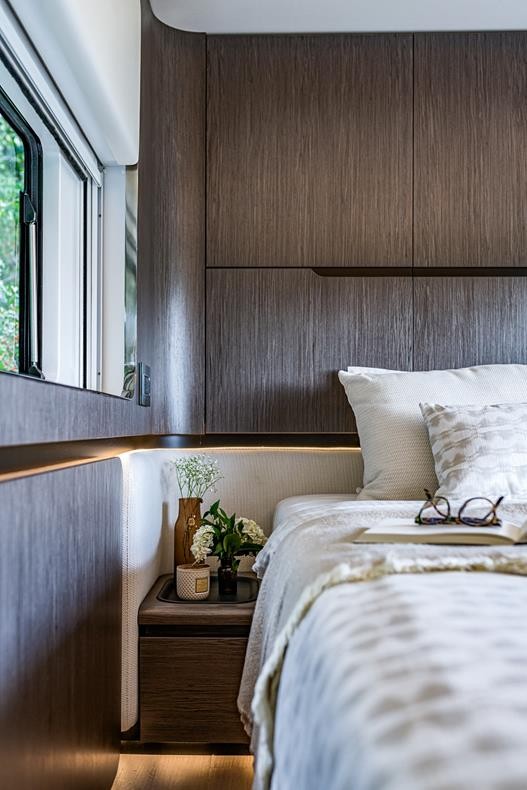

• Bed: 1800×2000 mm bed with spring-mattress according to individual needs for the highest comfort. Bedding with logo.

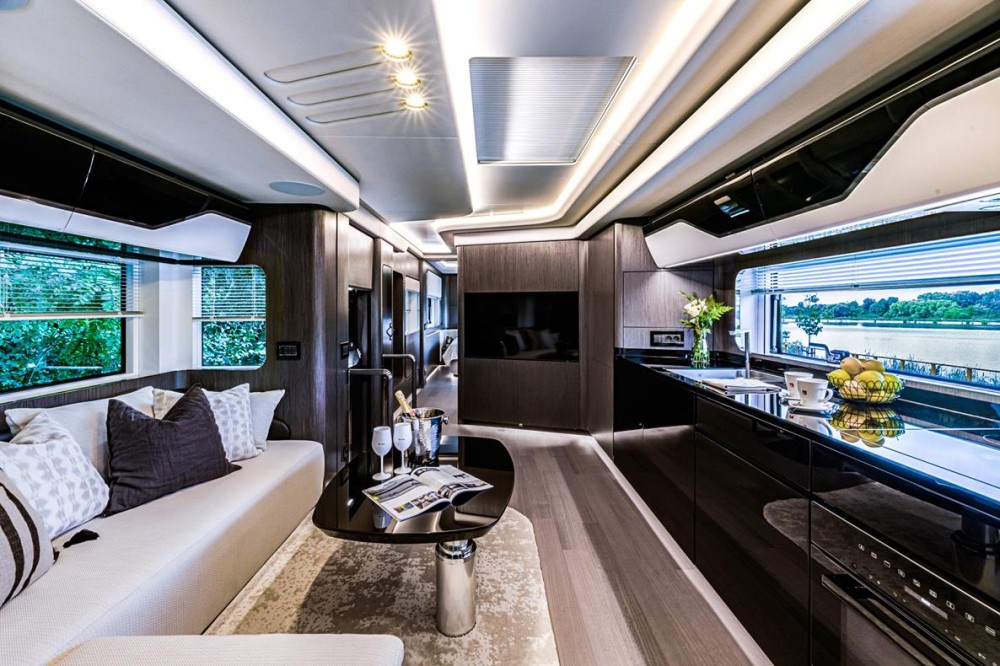

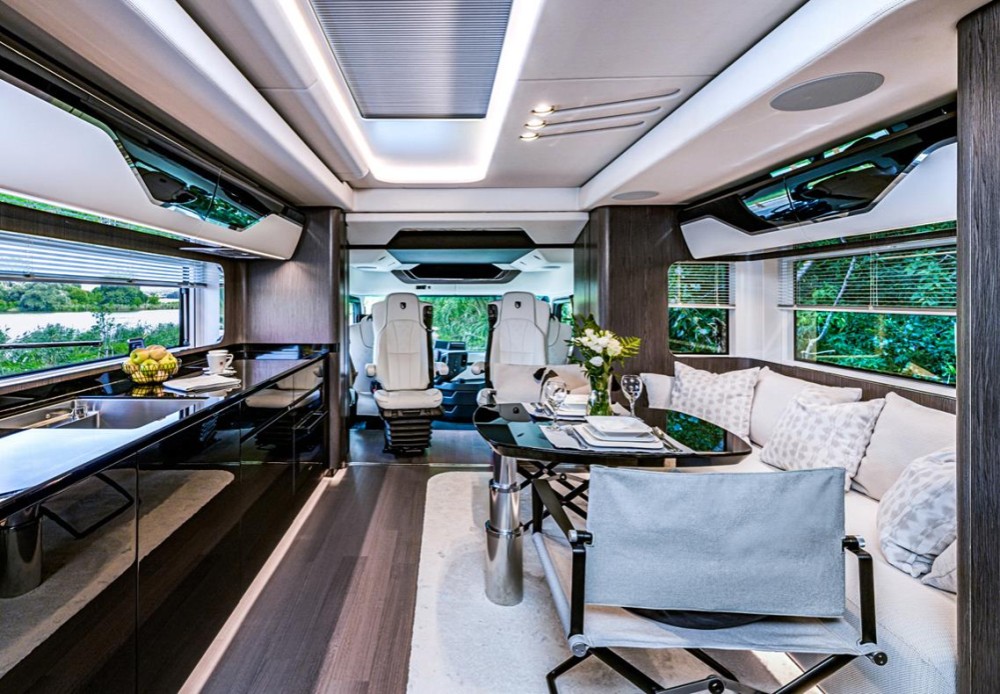

• Living area Removable carpet
• Tableware: Genuine ceramic and glass, with anti-crash stainless steel spikes in the cabinets

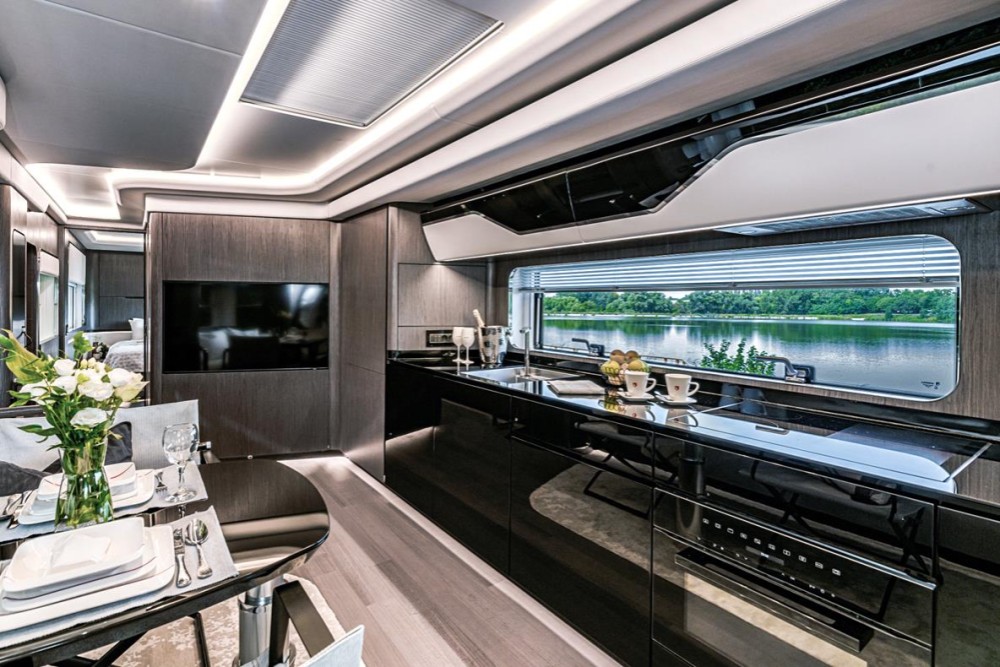

KITCHEN/ WASHROOM:

• Worktop: Made of tempered glass
• Back wall: Wood veneer
• Furniture: Real wood veneer, veneered interior, several colours to choose from, italian design

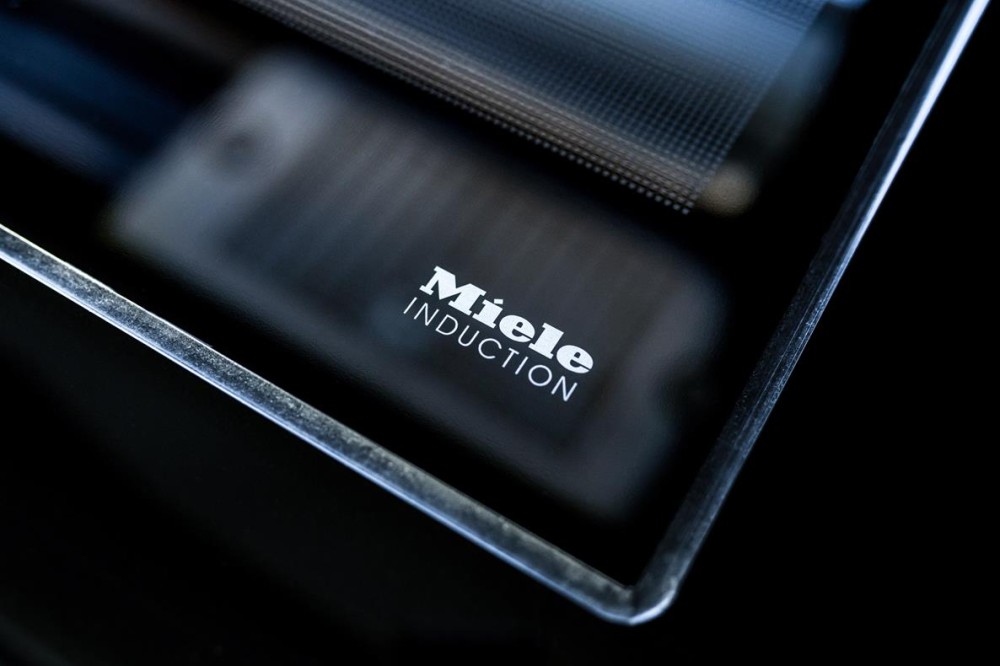

• Induction hob MIELE, two zones, 230 V
• Refrigerator and freezer LIEBHERR, net refrigerating volume 184 litres, net freezing volume 59 litres
• Dishwasher FISHER&PAYKEL, six place settings, four recessed 230 V sockets

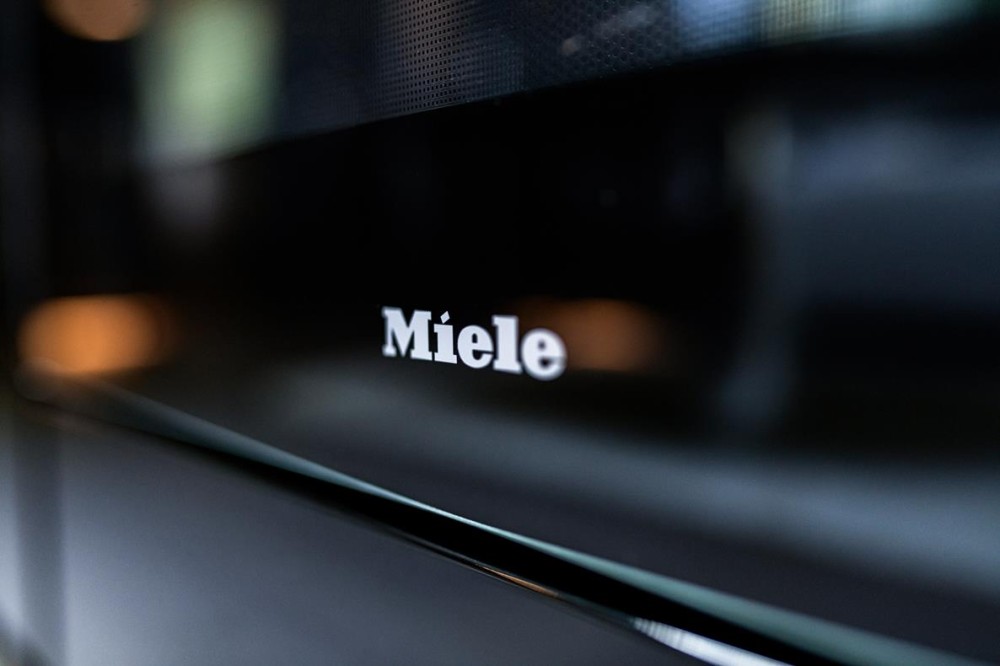

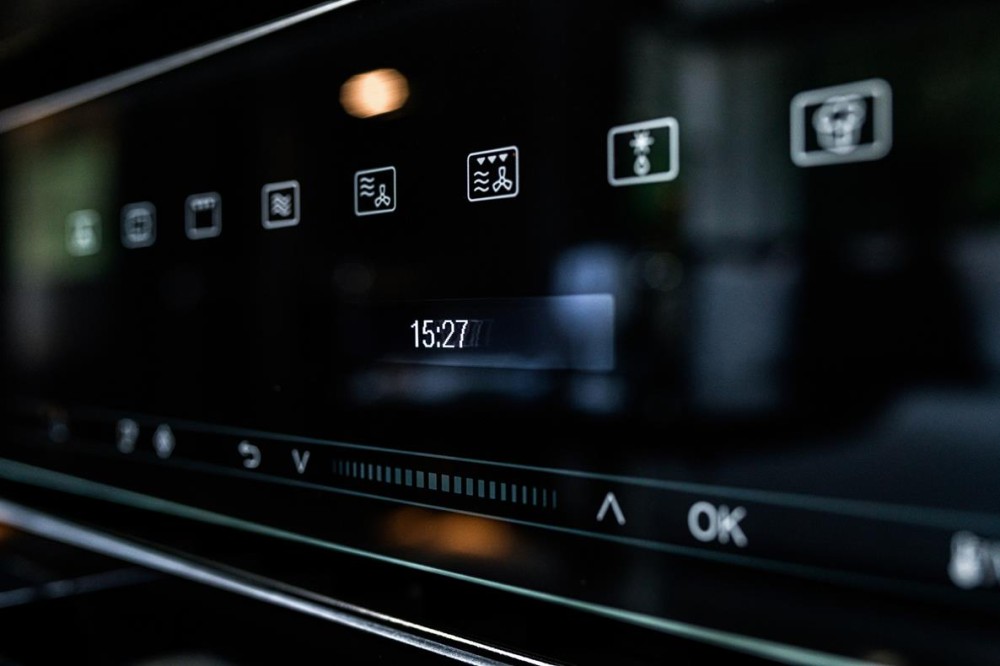

• Combi oven MIELE, microvawe/hot air
• Kitchen hood MIELE, with external outlet

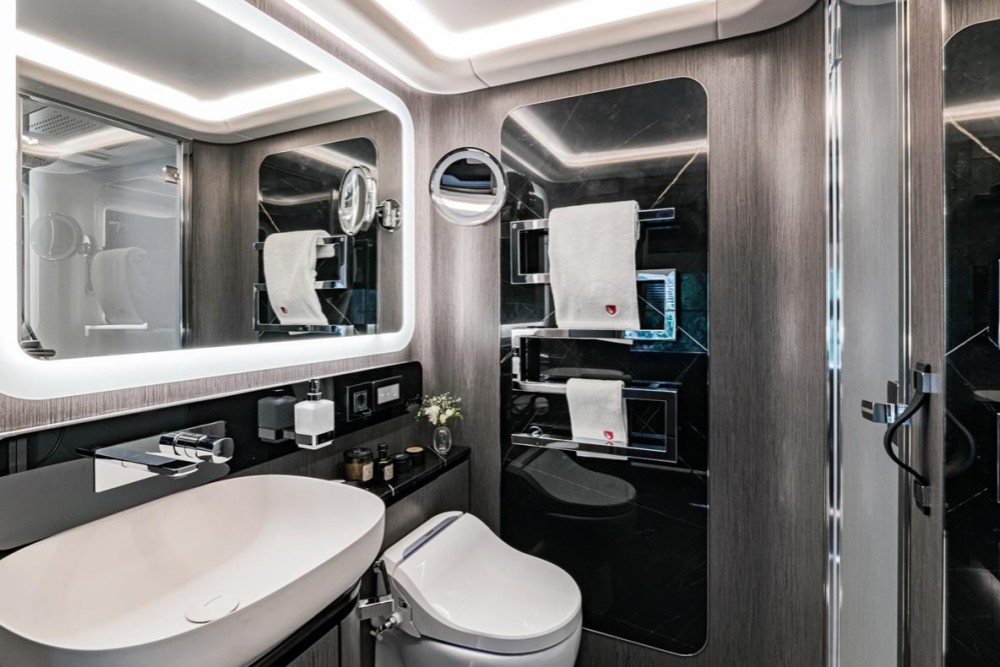

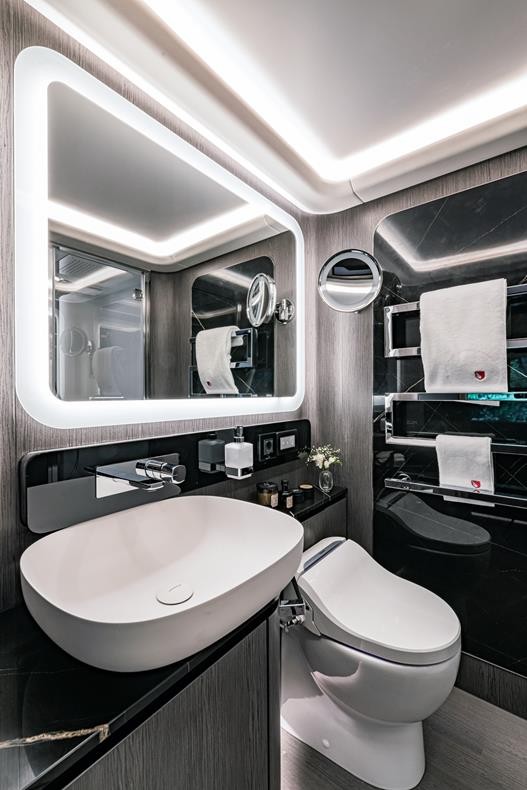

• Bath wall covering in Corian

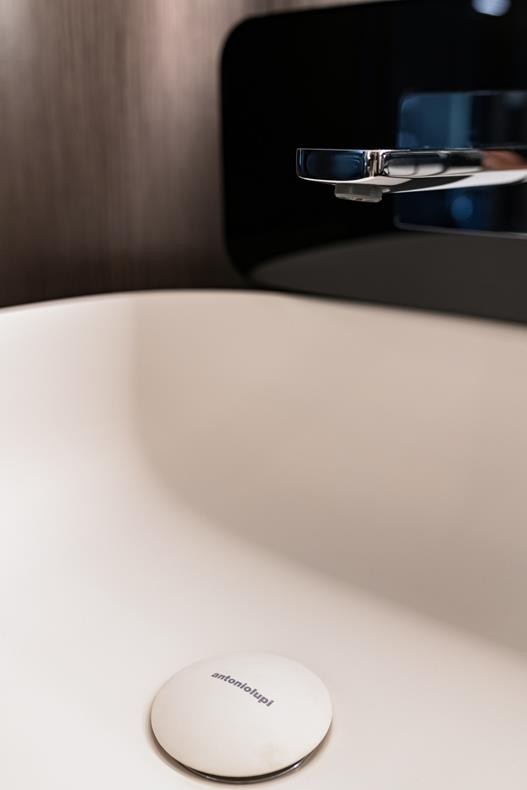

• Washbasin: Ceramic
• Mirrors: Uniquely designed bathroom mirror with round lighting, beautifying mirror with lighting
• Bathroom accessories GEDY
• Floor Heated, Covering of genuine lacquered wood
• Towel drying radiator
• Toilet TECMA BREEZE
• Wasching machine and tumble dryer MIELE

MULTIMEDIA:

• TV in the living area 50” flat screen LED TV, Ultra HD, 4K
• TV in the sleeping area 50” flat screen LED TV, Ultra HD, 4K
• Amplifier HARMAN KARDON, with bluetooth connection
• Ceiling speaker BOSE VIRTUALLY INVISIBLE 591, 2 pcs

ELECTRICAL:

• Batteries: 24V energy storage system, Board batteries 4×25.9V/130Ah (520Ah) with mechanical isolating switches, intelligent charge/ load isolation.
• On-the-go charging of board batteries with 140A charging current, with intelligent control, power supply for a group of 230V consumers from a sinusoidal inverter with a power output of 6500-13000 W
• Stationary start batteries: with 16A charging current with intelligent control when the vehicle is stationary

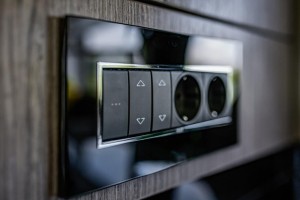

• Power supply: Each 230V supply and output circuit protected by a residual-current device, its 24/12V circuits are protected by a fuse. 2×230 V/16A power supply .

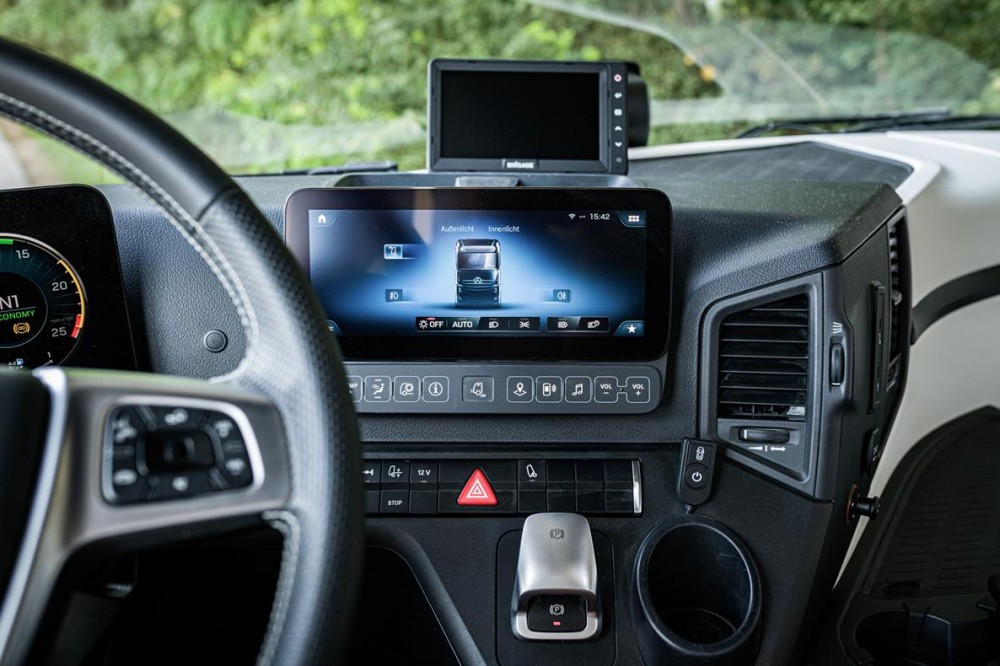

• Touch screen Full monitoring/controlling with touch screen display, accessible from remote devices (mobile phone, tablet) 10’’ Garmin display in the living area, 10” Tablet display in the driver’s cab
• Lighting circuits with dimming control, soft on/off

GARAGE:

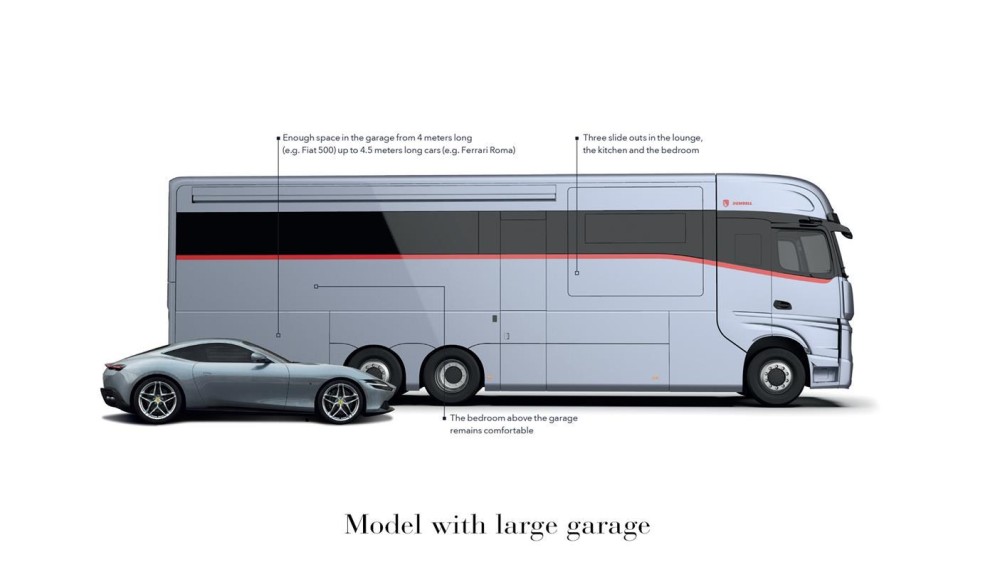

• Sliding platform for car intake. Electrically operated, load capacity 1.700 kg
• Hydraulic pusher: the floor plane can only be moved 35 cm, so taller vehicles cannot be parked in the garage

AIR CONDITIONING/ HEATING/ WATER:

• Air conditioner FUJITSU duct-type, multi split air conditioner 6.8 kW, R410A Invert, heat pump
• Sleeping area indoor unit cooling: 3.5 kW, heating: 4.1 kW
• Living area indoor unit cooling: 4.3 kW, heating: 5.0 kW
• Boiler SCHEER MH 10/17 Hybrid combi boiler, heat output: 10,000/17,000 W, Automatic burn control 100% sootless burning
• Temperature control in each room
• Radiator in each room (towel drying radiator in the bathroom)
• Underfloor heating In the living area, kitchen, bathroom and sleeping area
• Storage rooms and garage heating
• Fresh water tank: Capacity 1000 L, automatic level control. Built-in water disinfection device (UV lamp)
• Grey water tank: Insulated and heated. The electric drain valve can be controlled from the interior or tablet, capacity 460 L
• Pump With a delivery rate of 18.9 l / min and with 3.8 - 4.5 bar water pressure
• Toilet cistern Insulated and heated, with 3 “”connection. With electric drain valve can be controlled from the interior or tablet, capacity 400 L

Optionals

CHASSIS:

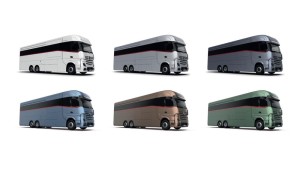

• Custom combination of internal and external colours
• Leather covered dashboard elements in beige colour
• Double bed in the cab electrically operated 1550×2000 mm cold foam mattress textile wall covering custom storage compartment
• Awning: 600×300 cm integrated in the side wall of the vehicle with electrical Valance function automatic wind sensor. LED lighting without outrigger leg for up to 39 kmph wind speed
• Second row of seats in the driver’s cabin* 2 pcs.(Windows in the driver’s cab next to the auxiliary seats on the right and left side cannot be opened)
• GRAMMER comfort seats with leather cover with integrated three-point seat belt rotatable height and tilt adjustment seat cushion depth adjustment armrests and integrated headrest seat heating and seat ventillation.
• Electric opening skylights in the lounge area and/or in the sleeping area
• Mosquito net on the entrace door
• Snow chain for the driving wheel
• Winter tyres M + S on all wheels
• Drag hook 3500 kg, 12 V socket
• Load distribution plates 4 pcs. for 400×400 mm sleepers, for loose ground, 40 mm high, 10t load capacity, 6 kg/pcs

MULTIMEDIA:

• HARMAN KARDON Citation Amp multiroom amplifier
• Two BOSE 791® II Virtually Invisible® ceiling speakers
• BOSE Bass Module 500B subwoofer
• Satellite reception system 85 cm parabolic antenna, fully automatic adjustment, control panel
• Wi-Fi router with SIM card adapter
• Repeater unit for remote access
• Multimedia system JVC KW-R930BT 2DIN, with Bluetooth, CD/USB/AU

ELECTRICAL:

• Inverter: A total capacity 600 Ah or 800 Ah
• VICTRON Quattro 24/8000/200-100/100 charger/sine wave inverter combination, charging power 24 V/max. 200 A, external power supply connection adjustable between 2-16 A, sinusoidal inverter with 24 - 230 V/6500 VA, Colour Control GX panel, three lithium batteries, LFP smart 25.9/200 A
• Battery VICTRON lithium battery LFP smart 25.9/200 Ah
• Solar system 1×330 W or 2×330 W or 3×330 W with intelligent charging controller, mechanical isolating switch
• Phone chargers induction-type, integrated in the bedside table, 2 pcs.
• Central vacuum cleaner
• Ultrasonic alarm system: with door/storage area opening sensors, interior protection, can be deactivated with remote control
• CO sensor: HONEYWELL, in the sleeping area and living area
• Gas detector: HONEYWELL PB, in the sleeping area and living area
• Lights: Additional reverse lights, four mounted on the vehicle chassis
• Electric mosquito nets and blinds

GARAGE:

• Ladder Telescopic, 4.1 m straight + ladder fixing in the garage
• Foldable, multifunctional telescopic aluminium ladder, 280 to 560 cm + ladder fixing in the garage
• Support structure for two bicycles in the rear garage with floor rails
• Scooter holder with electric winch, including brackets and ramp

GAS/ HEATING/ WATER:

• Gas stove: with two burners, MIELE CS 7102-1 FL
• With five burners, MIELE KM 3054-1
• Compartment for two 11 kg gas bottles
• TRUMA DuoControl safety controller with remote display Duo C and Eis-Ex
• Fuel tank 116 L, (80% refillable), safety controller, remote display, remote control
• Gas recovery valve under outdoor storage compartment
• Gas remote switch for the gas bottle system
• Heated side windows and skylights for even more comfort
• Positioning camera for an electric wastewater drain valve
