Excellent Edition 540 WLU

Equipment

Chassis / Security / Bodywork:

• KNOTT anti-twist stabiliser
• KNOTT ANS reverse braking system with automatic braking adjustment
• Jockey wheel
• Drawbar cover
• One-key locking system
• Integrated 3rd brake light
• Fog light
• Shock absorbers
• Tyres repair set
• Reinforced legs
• Tempo 100 approval
• Load indicator on the jockey wheel
• 15" steel rims with hubcaps
• Tilt and turn windows, double-glazed and tinted
• Panoramic front window with fully integrated sunblind and mosquito netting
• Combi cassette with blackout and insect screen in all windows (except bathroom)
• Dometic Seitz skylight, Midi-Heki 700 x 500 mm, with darkening and mosquito net in the living area
• Dometic Seitz skylight, Mini-Heki 400 x 400 mm, with darkening and mosquito net in the sleeping area
• Dometic Seitz skylight, Micro-Heki 280 x 280 mm, with darkening and mosquito net in bathroom
• One-piece entrance door, extra wide with triple-point locking, window, waste bin, compartments and pleated curtain with mosquito net
• Access handle
• Entrance step
• Integrated awning rail
• Welded rain bar with water outlet front/rear
• Insulated wheel well
• Wheel trim with rubber lip for organiser skirt
• LED awning light
• Gas bottle locker (designed for 2 x 11 kg bottles)
• Locker door  MAXI THETFORD with central locking
• Winter ventilation for seating group, cupboards and beds

Cell:

• Metallic table
• Wardrobe with interior lighting
• Soft-close storage cupboards
• Storage compartment under seating group

Kitchen:

• DOMETIC 133 l, 10 series, including 12-litre freezer drawer, with reversible door
• 3-burner stainless steel cooker and sink with electric ignition and glass top
• Fully removable drawers with soft-close, push-button locking system
• Kitchen panel with integrated darkener and mosquito net, light, 230V power sockets and  USB charging socket
• Cutlery tray
• Hand towel rail
• Kitchen light and separate power sockets

Washroom:

• Toilet room at the rear with separate shower cubicle
• THETFORD swivel toilet
• Frameless casement windows with translucent glazing

Water / Gas / Eletricity system:

• Grey water tank 23.5L, movable
• Fresh water tank 47L
• Submersible pump
• Gas regulator with pressure compensation and flexible pipe
• Gas distributor on the kitchen bar
• Control panel for lighting system and tank status display
• Separate light switch for children
• 12V / 350VA power supply with electronic regulation
• Differential switch
• Awning socket, incl. 230V output, SAT/TV connection
• Antenna socket with coaxial cable routing in living area
• 13-pole JAEGER connector
• Smoke detector
• Smart Home: HOBBY CONNECT (control via Hobby control panel and Bluetooth application)
• LED ambient lighting
• Reading lamps in the seating group
• Reading lamps in the sleeping area
• TRUMA combi 6 heater with 10-litre water heater and frost control valve

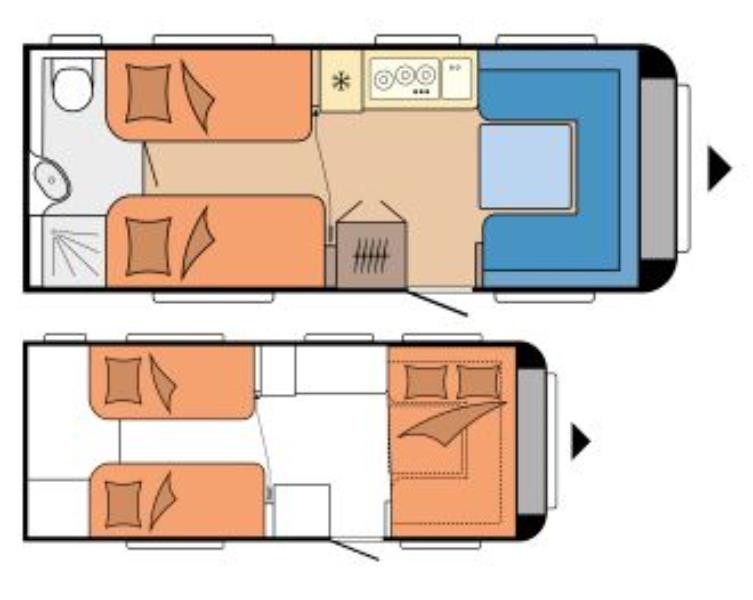

Measures:

• Twin beds: 1820 x 790 mm; 1950 x 790 mm
• Dinette bed: 2038 x 1250 mm
